> >NASA KSC-STD-152-1 Rev. C
New Reduced price! NASA KSC-STD-152-1 Rev. C View larger

NASA KSC-STD-152-1 Rev. C

M00000990

New product

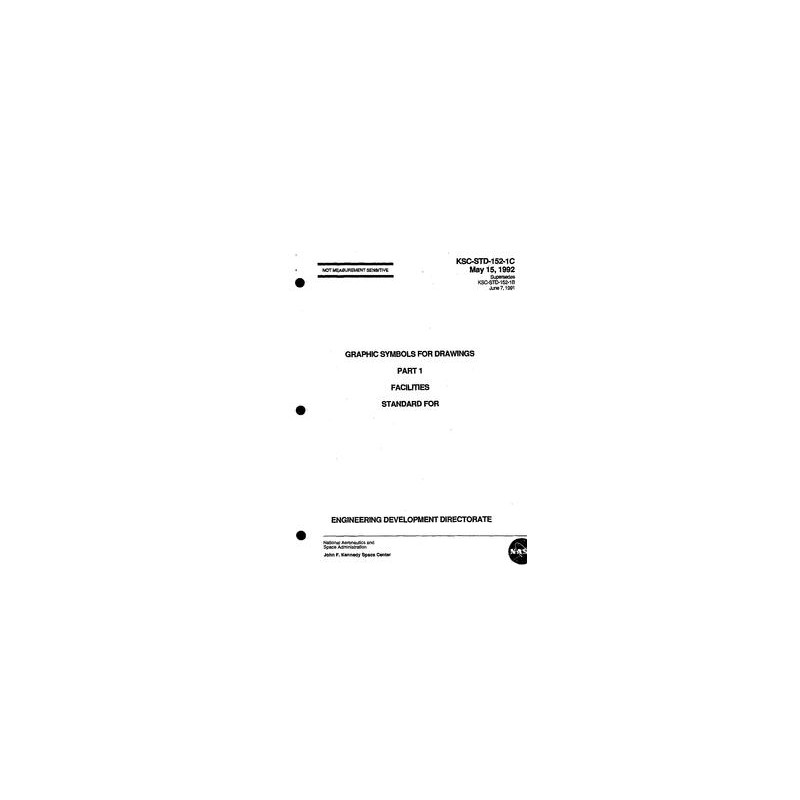

NASA KSC-STD-152-1 Rev. C Graphic Symbols for Drawings. Part 1: Facilities, Standard for

standard by National Aeronautics and Space Administration, 05/12/1992

More details

In stock

$21.60

-40%

$36.00

More info

Full Description

This standard establishes the requirements applicable to the graphic symbols to be used on conventional and nonconventional facilities drawings prepared by or for the John F. Kennedy Space Center (KSC), NASA. This standard applies to those symbols used on civil, architectural, structural, mechanical, and electrical drawings used to construct or modify facilities and other drawings required for operation, maintenance, or other use of the facilities.

Product Details

Edition: C Published: 05/12/1992 Number of Pages: 67 File Size: 1 file , 1.1 MB
